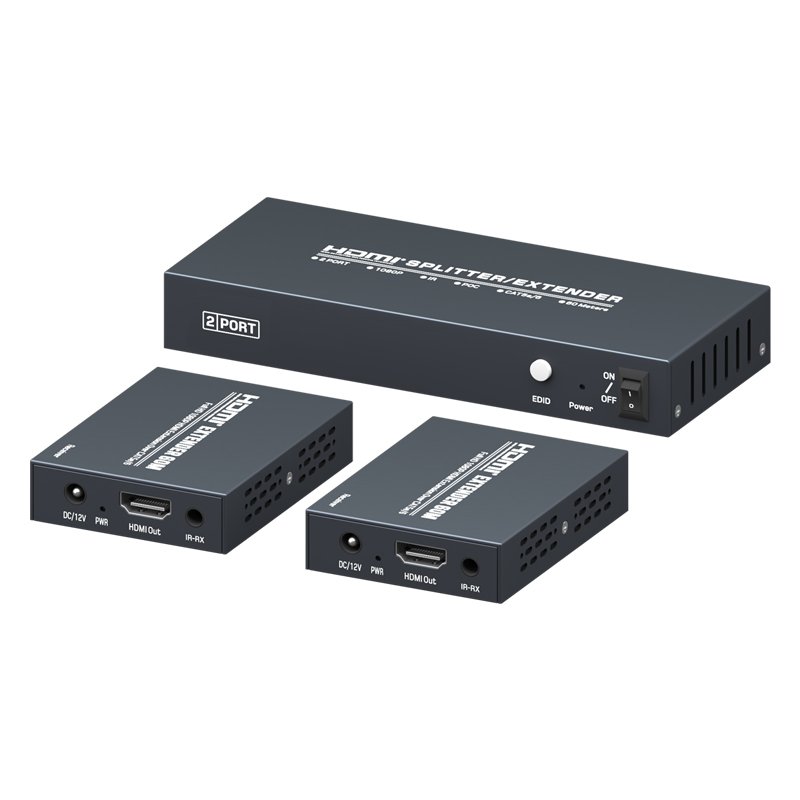

2-Port HDMI Splitter & Extender Kit – 60m over CAT5e/6 Cable

Distribute HDMI signals to 2 displays up to 60m via single CAT5e/6 cable. Supports 1080p@60Hz, IR control & PoC technology.

Request a Quote

For quotation support, include the model, quantity, cable length or configuration, and your application requirements.

Request A Quote

Professional Multi-Display Solution​​
This industrial-grade extender transmits uncompressed 1080p video and high-fidelity audio (including DTS-HD/Dolby TrueHD) across two displays simultaneously. Featuring HDMI loop-out and EDID management, it ensures perfect signal synchronization for digital signage and control rooms.

​​Technical Specifications​​

​​Parameter​​​​Specification​​
Max Resolution1080p@60Hz
Transmission60m over CAT5e/6
IR Support20-60KHz bi-directional
Power SystemPoC + 12V 1A adapter
Dimensions (Tx)149x64x21.5mm
Dimensions (Rx)78.5x58x17mm
Operating Temp-40°C to +85°C
