HDMI Distribution & Extension

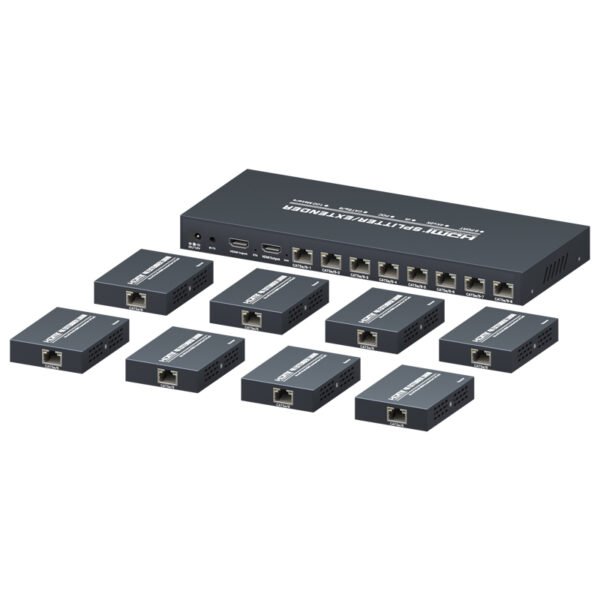

The T-108EX100A is a powerful, integrated solution combining HDMI 1.4 signal distribution and long-distance extension into a single, reliable unit. Designed for demanding commercial and professional AV installations, it takes one HDMI source signal and distributes it to up to eight displays simultaneously, while transmitting the signal flawlessly over 100 meters using standard Cat5e/6/7 network cable (UTP).
Engineered for Professional Performance:
- Integrated 100m Extension: Eliminate bulky HDMI cables and costly fiber solutions. Achieve high-quality 1080p or 4K@30Hz transmission up to 100m over affordable, readily available Cat6 cable.
- True 1×8 Distribution: Perfect for digital signage, conference rooms, control centers, hospitality, and educational settings requiring multi-screen displays.
- Simplified Power (PoC): Our Power over Cable (PoC) technology allows the Receiver (RX) units to draw power directly from the Cat6 cable, eliminating the need for separate power adapters at each remote display location. This drastically simplifies installation and reduces clutter.
- Bi-Directional IR Control (20-60KHz): Transmit IR commands seamlessly between the central source location (TX) and all remote displays (RX units) through the Cat6 cable for effortless system control.
- HDMI Local Loop: The Transmitter (TX) unit features a local HDMI output loop, ideal for source monitoring at the central rack location.
- Full HD & 4K Compatibility: Supports HDMI 1.4 standards, HDCP 1.4, and resolutions up to 4K@30Hz, 1080p, 720p, 576p, and 480p.
- Smart EDID Management: Built-in EDID management with a simple setting button ensures optimal compatibility and resolution negotiation with source and display devices.
Ideal For: Digital Signage Networks, Conference & Board Rooms, Hotel In-room Entertainment, Command & Control Centers, House of Worship AV, Education Technology, Broadcast Studios, Custom Integration Projects.
Package Includes: 1 x TX Unit, 8 x RX Units, 1 x 12V 3A Power Adapter, 1 x IR-TX Cable, 8 x IR-RX Cables, Product Manual.
6. Technical Specifications Table:
| Feature | Specification |
|---|---|
| Model | T-108EX100A |
| Function | HDMI 1.4 Splitter & Extender (1 Input x 8 Outputs) |
| Extension Type | Over UTP Cat5e/6/7 Cable |
| Extension Distance | Up to 100 meters (330 ft) |
| HDMI Standard | HDMI 1.4, HDCP 1.4 Compliant |
| Max. Output Res. | 4K@30Hz, 1080p@60Hz, 720p, 576p, 480p |
| Local Output (TX) | 1 x HDMI Loop-Out |
| IR Control | Bi-directional IR Passthrough (20-60KHz), IR-TX & 8 x IR-RX Ports |
| Power Supply (TX) | 12V DC, 3A Adapter (Included) |
| Power Supply (RX) | PoC (Power over Cable) – Powered via TX via Cat6 (No Local PSU Needed) |
| EDID Management | Yes (DIP Switch / Push Button) |
| Product Housing | Metal Chassis (Space Gray) |
| TX Dimensions (WxDxH) | 277 x 110 x 25 mm |
| RX Dimensions (WxDxH) | ~65 x 50 x 20 mm (Typical) |
| Net Weight (Per Set) | Approx. 1.7 kg |
| Package Content | 1x TX, 8x RX, 1x 12V 3A PSU, 1x IR-TX Cable, 8x IR-RX Cables, Manual |
