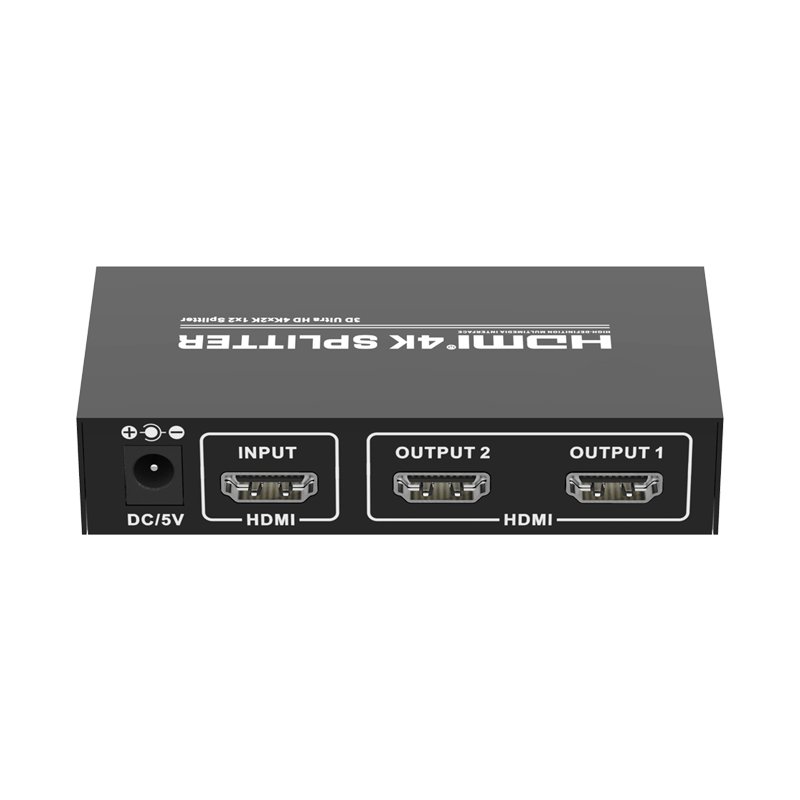

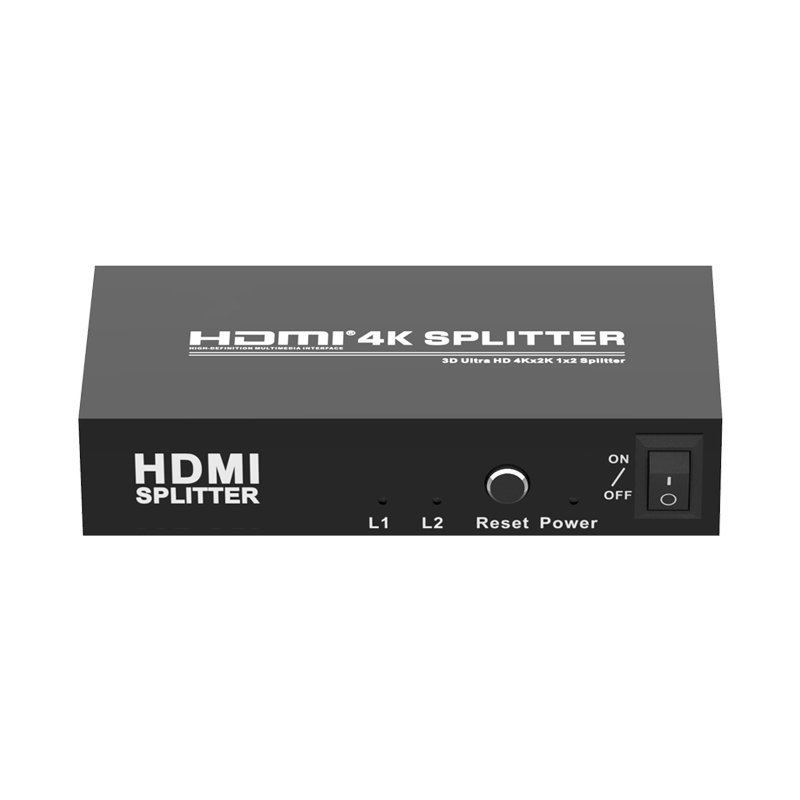

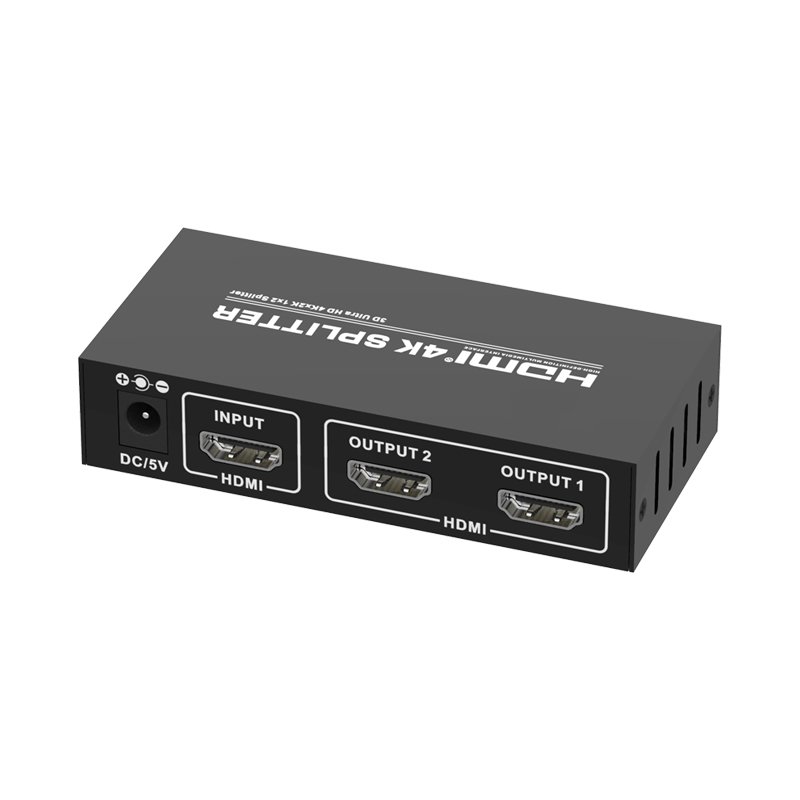

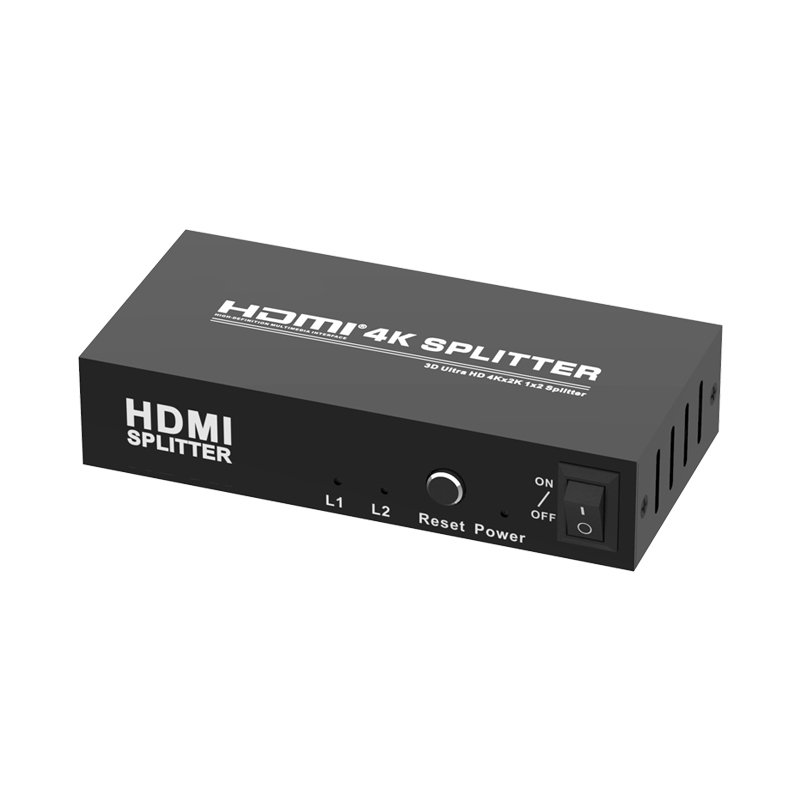

T-102A Ultra HD 4K HDMI 1×2 Splitter – 3D, HDR, HDCP 1.4 Support

The T-102A HDMI 1×2 Splitter delivers pristine 4K@30Hz video and immersive audio to dual displays. Featuring metal shielding, signal amplification, and universal HDMI 1.4 compatibility, it’s perfect for commercial AV setups.

Request a Quote

For quotation support, include the model, quantity, cable length or configuration, and your application requirements.

Request A Quote

Elevate your AV distribution with the T-102A HDMI 1×2 Splitter, engineered to deliver flawless signal replication for high-definition displays. Supporting Ultra HD 4K resolution at 30Hz, this splitter seamlessly distributes HDMI 1.4 signals from a single source to two displays, ensuring full compatibility with 3D, HDR, and HDCP 1.4 protocols. Ideal for commercial installations, conference rooms, and digital signage, it handles resolutions up to 3840×2160 while extending transmission distances up to 25 meters.

Key Features:

  • Crystal-Clear 4K Distribution: Distribute 4K@30Hz, 1080p, and HDR content without signal degradation.
  • Robust Signal Integrity: Built-in signal amplification and buffering prevent data loss, even with extended cables (26AWG HDMI 1.4 certified).
  • Universal Compatibility: Works with Blu-ray players, gaming consoles, set-top boxes, and DVI devices (via adapters).
  • Advanced Audio Support: Processes Dolby TrueHD, DTS-HD, and LPCM 7.1 audio formats.
  • Durable & Reliable: Shielded metal casing minimizes interference, with LED indicators for real-time signal monitoring.

Technical Specifications

ParameterSpecification
ModelT-102A
TypeHDMI 1×2 Splitter
Input Port1 (HDMI 19-pin)
Output Ports2 (HDMI 19-pin)
Max Resolution4K Ultra HD (3840×2160@30Hz)
Supported Resolutions480i/p, 576i/p, 720p, 1080i/p, 4K@30Hz
HDMI VersionHDMI 1.4
HDCP ComplianceHDCP 1.4
Audio FormatsDTS-HD, Dolby TrueHD, LPCM 7.1, DSD
Bandwidth340 MHz / 10.2 Gbps
Input Cable Length≤15m (PS4/Blu-ray)
Output Cable Length≤25m (26AWG HDMI 1.4 cable)
Power Supply5V/1A DC Adapter (included)
Dimensions (LxWxH)100 x 48 x 25 mm
Weight0.13 kg (Unit)
Operating Temperature0°C to 70°C
Material/ColorMetal Casing / Black
IndicatorsPower/Signal LED
